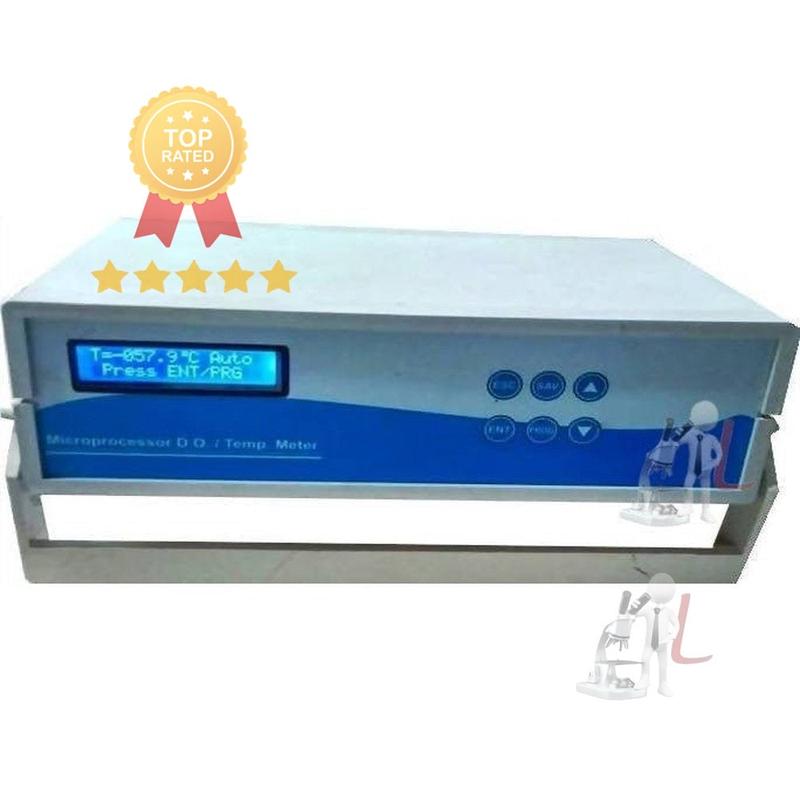

Microprocessor Dissolved Oxygen Meter

$9,350.00 $147.00

Share:

dissolved oxygen meter price

Microprocessor Based DO-Temp. Meter 1530-G is a solid-state instrument designed to provide the precise dissolved oxygen measurements. The instrument uses the latest Microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts, which guide you through out the measurement process.

The system has 6 soft touch membrane type keys for ease of operation. It has the storage facility for 999 samples, which are retained in the memory even when the system is switched OFF.

The instrument is extremely useful for natural waters, sewage wastes, agricultural and soil analysis laboratories, swimming pools, water quality control in boiler feed water, food processing, pharmaceuticals, medical/biomedical and microbial Studies water works department, fertilizer plants, petroleum refineries, breweries/beverages/distilleries, water purification plants etc.

Technical Specifications

GENERAL

Parameters

:

Dissolved oxygen and Temperature

Display

:

16 x 2 lines Alphanumeric LCD Display with Backlit

Key Board

:

6 soft touch membrane type keys

Power supply

:

230V 10% AC,50 Hz.

Storage

:

Up to 999 samples, storage in data memory

Setting

:

By Soft Touch Keys

Interface

:

Serial RS-232 Port

PARAMETERS

Dissolved Oxygen (D.O)

Range

:

0-20 ppm

Range Selection

:

Automatic

Accuracy

:

0.2 ppm

Resolution

:

0.1 ppm

Temperature Compensation

:

0-50 C (Auto/Manual)

Temperature Coefficient

:

Automatic

Reference Temperature

:

25 C

Temperature

Range

:

0 to 100.0oC

Resolution

:

0.1oC

Accuracy

:

0.1oC

Sensor

:

PT100 Sensor

Calibration

:

Automatic

STANDARD ACCESSORIES

1.

Dissolved Oxygen Probe

1 No.

2.

Dissolved Oxygen Membranes

10 No.

3.

Temperature Probe

1 No.

4.

Dust Cover

1 No.

5.

Instruction Manual

1 No.

6.

DO Probe stand with clamp

1 No.

7.

Main lead

1 No.
