Microprocessor pH Meter (5 Point Calibration)

Reviews (0)
$22,000.00 $149.00

Categories :
Share:

pH Meter price

Microprocessor Based pH-mV-Temp. Meter Model No.: 1210-G is a solid-state instrument designed to provide the precise pH and mV measurements. The instrument uses the latest Microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts, which guide you through out the measurement process.

The system has 8 soft touch membrane type keys for ease of operation. It has the storage facility for 1000 samples, which are retained in the memory even when the system is switched OFF. Provision has also been provided for attachment of Centronics dot matrix printer so that any of the stored results can be printed.

The instrument is extremely useful for agricultural and soil analysis laboratories, swimming pools, water quality control in boiler feed water, water works department, fertilizer plants, petroleum refineries, breweries, water purification plants etc.

Technical Specifications

GENERAL

Parameters

:

pH, mV and Temperature

Display

:

16 x 2 lines Alphanumeric LCD display with backlit

Key Board

:

8 soft touch membrane type keys

Power supply

:

230V 10% AC,50 Hz.

Storage

:

Up to 1000 samples, storage in data memory

Printer Attachment

:

Provision for attachment of Centronics dot matrix printer

Display Format

:

Temp. & pH, Temp. & ORP Simultaneously

Auto Display of Selected Buffer

Setting

:

By Soft Touch Keys

Interface

:

Serial RS-232 Port and Parallel Centronics Port

Error Indication

:

pH ERROR, BUFFER ERROR, mV ERROR

Print Format

:

All Data wise

PARAMETERS

pH

Range

:

-2.000 TO 20.000 pH

Resolution

:

0.001 pH

Accuracy

:

0.002 pH (RELATIVE)

Temperature Compensation

:

-5 to 110C Auto/Manual

Automatic with Temp. Probe & Manual by Keys

Auto Buffer Recognition

:

1.680, 4.000, 7.000, 9.200, & 12.450 pH or User Defined

Slope Adjustment

:

80% to 120%, By Default 100%

Calibration

:

Auto / Manual

2-POINT, 3-POINT, 4-POINT, 5-POINT

Relative Stability

:

0.002 pH/Hour


mV (ORP)

Range

:

0 to + 1999.9 mV

Resolution

:

0.1 mV & 0.01 mV

Accuracy

:

0.1 mV 1 Digit

Calibration

:

MANUAL

Temperature

Range

:

-5.00 TO +110.00 C

Resolution

:

0.1 C

Accuracy

Add a Review

Your email address will not be published. Required fields are marked *

Related Products

Microprocessor pH Meter (3 Point Calibration)
Microprocessor pH Meter (3 Point Calibration)
$8,250.00

$148.00

Refrigerated Centrifuge Price
Refrigerated Centrifuge Price
$130,000.00

$150.00

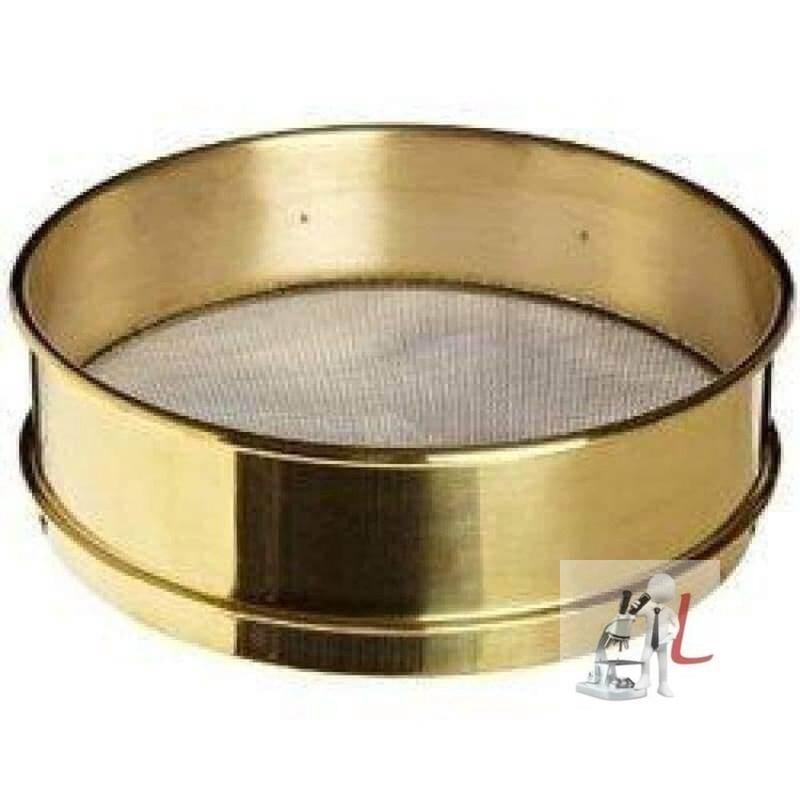

Brass Sieves 8\" 4 BSS
Brass Sieves 8\" 4 BSS
$1,200.00

$146.00

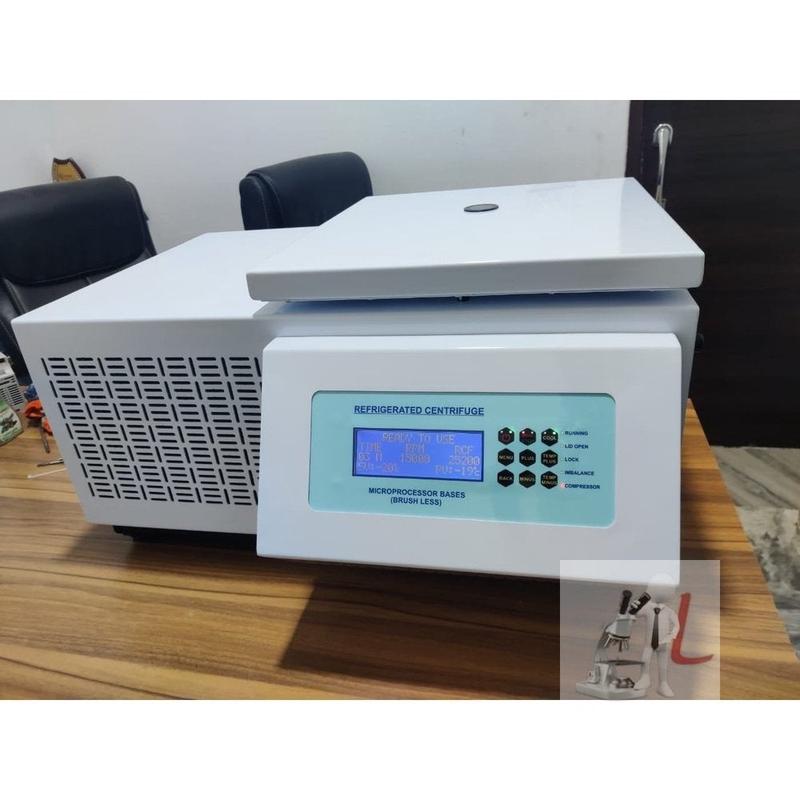

Cooling Centrifuges, DCM-12
